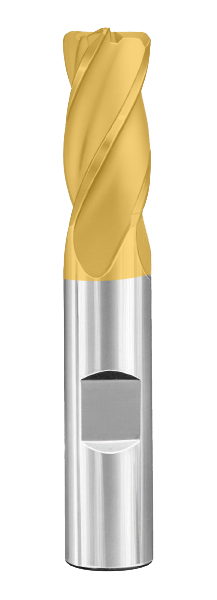

SGS Corner Radius End Mill: 3/16" Dia, 5/8" LOC, 2" OAL, .020" Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 38160

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-38160
$63.06

SGS 01C corner radius end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 38160.

Specifications

Series
01C
Unit of Measure
Inch
Shank Diameter (Fractional)
3/16
Length of Cut (Fractional)
5/8
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
2
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.1875
Cutting Diameter (Metric)
4.76
Length of Cut (Decimal)
0.6250
Length of Cut (Metric)
15.88
Shank Diameter (Decimal)
0.1875
Shank Diameter (Metric)
4.76
Overall Length (Decimal)
2.0000
Overall Length (Metric)
50.80
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Fractional)
3/16
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Length (Metric)
34.93
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Shank Length (Decimal)
1.3750
Corner Radius (Decimal)
0.0200
Corner Radius (Metric)
0.51
Length Type
Long
Performance Class
General Purpose
Rake
Positive
Shank Length (Fractional)
1-3/8
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Corner Radius End Mill: 3/16" Dia, 5/8" LOC, 2" OAL, .020" Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 38160
$63.06
