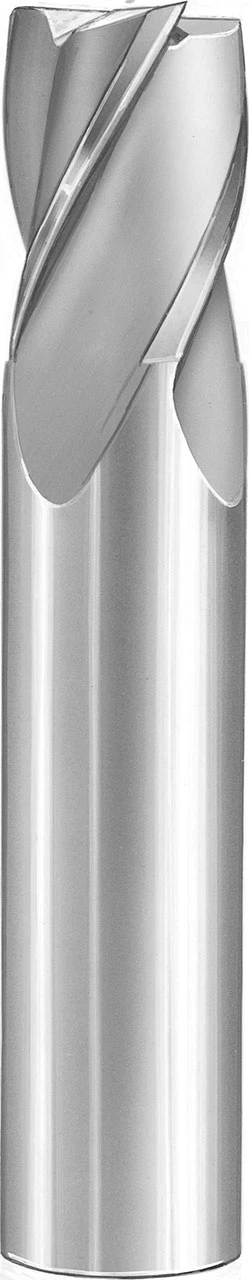

SGS Square End Mill: 3/16" Dia, 5/8" LOC, 2" OAL, 4 Flute, Bright/Uncoated, Solid Carbide, 30123

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-30123
$46.32

SGS 01S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 30123.

Specifications

Series
01S
Unit of Measure
Inch
Shank Diameter (Fractional)
3/16
Length of Cut (Fractional)
5/8
Overall Length (Fractional)
2
Number of Flutes
4
Shank Type
Straight
Shank Length (Decimal)
1.3750
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.1875
Cutting Diameter (Metric)
4.76
Length of Cut (Decimal)
0.6250
Length of Cut (Metric)
15.88
Shank Diameter (Decimal)
0.1875
Shank Diameter (Metric)
4.76
Overall Length (Decimal)
2.0000
Overall Length (Metric)
50.80
Flute Type
Spiral
Helix Angle
30 degrees
Shank Length (Metric)
34.93
Cutting Diameter (Fractional)
3/16
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Helix Direction
Right
Coolant Option
External Coolant
Shank Length (Fractional)
1-3/8
End Type
Square
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Length Type
Long
Size System
Fractional
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Square End Mill: 3/16" Dia, 5/8" LOC, 2" OAL, 4 Flute, Bright/Uncoated, Solid Carbide, 30123
$46.32
