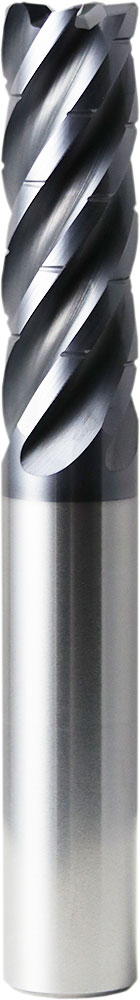

SGS Corner Radius End Mill: 3/16" Dia, 9/16" LOC, 2-1/2" OAL, .010" Corner Radius, 5 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 37411

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-37411
$99.05

SGS Z5C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 37411.

Specifications

Series
Z5C
Unit of Measure
Inch
Shank Diameter (Fractional)
3/16
Length of Cut (Fractional)
9/16
Number of Flutes
5
Shank Type
Straight
Overall Length (Fractional)
2-1/2
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.1875
Cutting Diameter (Metric)
4.76
Length of Cut (Decimal)
0.5625
Length of Cut (Metric)
14.29
Shank Diameter (Decimal)
0.1875
Shank Diameter (Metric)
4.76
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
37 degrees
Helix Direction
Right
Cutting Diameter (Fractional)
3/16
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.0660
Non-Cutting Center Diameter (Metric)
1.68
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0012
Cutting Diameter Tolerance (Metric)
+0.000/-0.030
End Type
Corner Radius
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Long
Variable Helix
No
Center Cutting
No
Chip Breaker
Yes
Type
Z-Carb-HPR
Size System
Fractional
Corner Radius (Decimal)
0.0100
Corner Radius (Metric)
0.25
Hand Direction
Right
Maximum Workpiece Hardness
45 HRC
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 3/16" Dia, 9/16" LOC, 2-1/2" OAL, .010" Corner Radius, 5 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 37411
