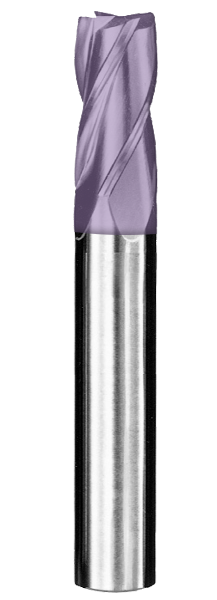

SGS Square End Mill: 3/32" Dia, 3/8" LOC, 1-1/2" OAL, 4 Flute, TiCN (Ti-NAMITE-C), Solid Carbide, 35501

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-35501
$46.14

SGS 54S square end mill for non-ferrous metals, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiCN coating. Manufacturer part number 35501.

Specifications

Series
54S
Unit of Measure
Inch
Cutting Diameter (Fractional)
3/32
Shank Diameter (Fractional)
1/8
Length of Cut (Fractional)
3/8
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
1-1/2
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
TiCN
Cutting Diameter (Decimal)
0.0938
Cutting Diameter (Metric)
2.38
Length of Cut (Decimal)
0.3750
Length of Cut (Metric)
9.53
Shank Diameter (Decimal)
0.1250
Shank Diameter (Metric)
3.18
Overall Length (Decimal)
1.5000
Overall Length (Metric)
38.10
Flute Type
Spiral
Helix Angle
30 degrees
Shank Length (Fractional)
1-1/8
Shank Length (Metric)
28.58
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Fractional
Coolant Option
External Coolant
Shank Length (Decimal)
1.1250
Helix Direction
Right
End Type
Square
Performance Class
General Purpose
Rake
Positive
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Length Type
Long
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
