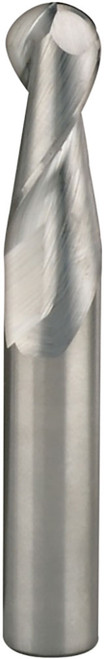

SGS 3/4" Dia, 2 Flute, Ball Nose End Mill - 34676

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34676
$676.18
SGS 3/4" Dia, 1.6200" LOC, 3/4" Shank Dia, 2 Flute, 35 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 47B, S-Carb, Ball Nose End Mill - 34676

Specifications

Series
47B
Unit of Measure
Fractional
Shank Size
3/4 Inch
Number Of Flutes
2
Shank Type
Straight
Overall Length
4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1.62
Length of Cut (Metric)
41.15
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
35 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Cutting Diameter
3/4 Inch
SGS 3/4" Dia, 2 Flute, Ball Nose End Mill - 34676
$676.18
