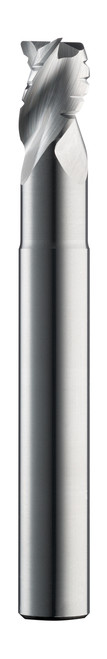

SGS 3/4" Dia, 1" LOC, 2" Reach, 3/4" Shank Dia, 0.0300" Radius, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43CB, S-Carb, Chip Breaker Corner Radius End Mill - 33559
Specifications
Unit of Measure
Fractional
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Neck Diameter (Decimal)
0.73
Neck Diameter (Metric)
18.54
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Chip Breaker / Right Hand Cut Direction (RHC)
Cutting Diameter
3/4 Inch
Corner Radius (Decimal)
0.03
Corner Radius (Metric)
0.76
