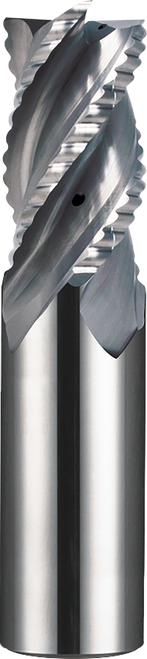

SGS 3/4" Dia, 1-1/4" LOC, 3" Reach, 3/4" Shank Dia, 0.1200" Radius, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR, S-Carb APR, Chip Breaker Corner Radius End Mill - 34007
Specifications
Unit of Measure
Fractional
Overall Length
4-7/8 Inch
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1.25
Length of Cut (Metric)
31.75
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4.88
Overall Length (Metric)
123.83
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.73
Neck Diameter (Metric)
18.49
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0012
Corner Radius Tolerance (Metric)
+0.000/-0.030
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Cutting Diameter
3/4 Inch
Corner Radius (Decimal)
0.12
Corner Radius (Metric)
3.05
