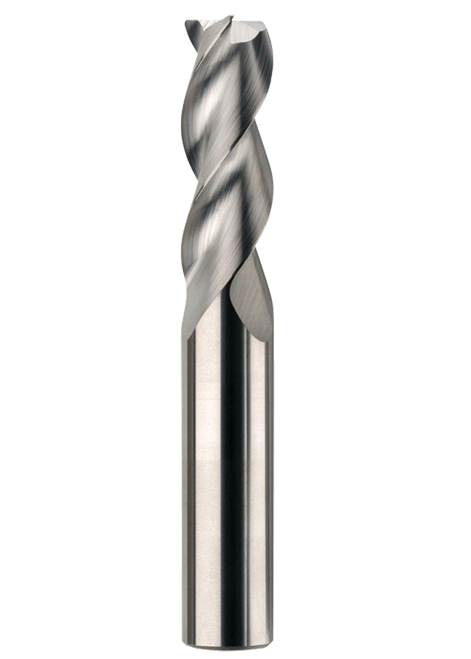

SGS 3/4" Dia, 3 Flute, Corner Radius End Mill - 34809

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34809
$663.53
SGS 3/4" Dia, 1-5/8" LOC, 3/4" Shank Dia, 0.0900" Radius, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43CR, S-Carb, Corner Radius End Mill - 34809

Specifications

Series
43CR
Unit of Measure
Fractional
Length of Cut
1-5/8 Inch
Shank Size
3/4 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
4 Inch
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1.63
Length of Cut (Metric)
41.28
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Type
S-Carb
Cutting Diameter
3/4 Inch
Corner Radius (Decimal)
0.09
Corner Radius (Metric)
2.29
SGS 3/4" Dia, 3 Flute, Corner Radius End Mill - 34809
$663.53
