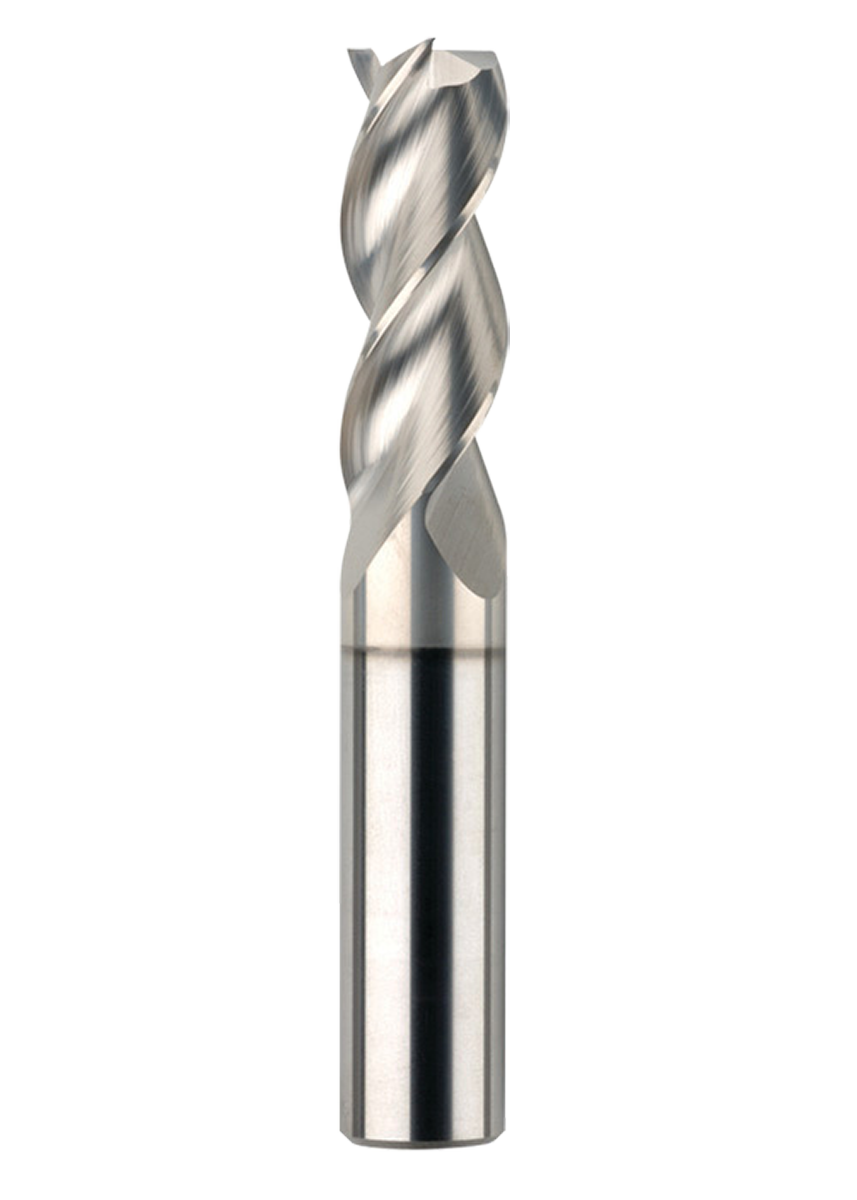

SGS 3/4" Dia, 3 Flute, Square End End Mill - 32742

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-32742
$935.88
SGS 3/4" Dia, 1" LOC, 3-3/8" Reach, 3/4" Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43LS, S-Carb, Square End End Mill - 32742

Specifications

Series
43LS
Unit of Measure
Fractional
Diameter
3/4 Inch
Length of Cut
1 Inch
Shank Size
3/4 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
6 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
6
Overall Length (Metric)
152.40
Flute Type
Spiral
Helix Angle
38 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Reach (Decimal)
3.38
Reach (Metric)
85.73
Reach (Fractional)
3-3/8
Neck Diameter (Decimal)
0.73
Neck Diameter (Metric)
18.54
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 3/4" Dia, 3 Flute, Square End End Mill - 32742
$935.88
