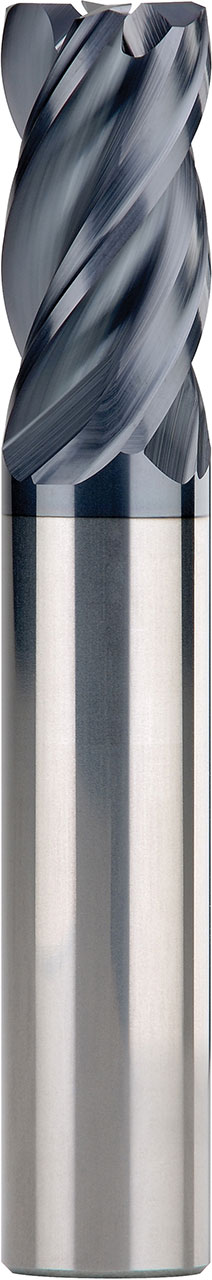

SGS Corner Radius End Mill: 3/4" Dia, .937" LOC, 4-1/2" OAL, .060" Corner Radius, 2.260" Reach, 4 Flute, TX (Ti-NAMITE-X), Solid Carbide, 36792

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-36792
$748.85

SGS ZD1C corner radius end mill for cast iron and hardened steel, 4 flutes, variable helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 36792.

Specifications

Series
ZD1C
Unit of Measure
Inch
Shank Diameter (Fractional)
3/4
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
4-1/2
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X
Cutting Diameter (Decimal)
0.7500
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
0.9370
Length of Cut (Metric)
23.80
Shank Diameter (Decimal)
0.7500
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4.5000
Overall Length (Metric)
114.30
Flute Type
Spiral
Helix Angle
42-45 degrees
Cutting Diameter (Fractional)
3/4
Secondary Workpiece Material
Steel
Reach (Decimal)
2.2600
Reach (Metric)
57.40
Neck Diameter (Decimal)
0.7350
Neck Diameter (Metric)
18.67
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Fractional
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
Z-Carb-MD
Shank Length (Decimal)
3.5600
Corner Radius (Decimal)
0.0600
Corner Radius (Metric)
1.52
Length Type
Stub
Rake
Negative
Shank Length (Metric)
90.42
Shank Tolerance
h6
Workpiece Material
Cast Iron, Hardened Steel
