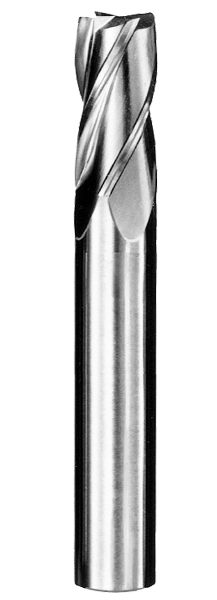

SGS 3/4" Dia, 4 Flute, Square End End Mill - 72985

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-72985
$2,430.72
SGS 3/4" Dia, 1-3/8" LOC, 3/4" Shank Dia, 4 Flute, 12 Degree Helix, Di-NAMITE (Diamond) Coated, Series 27, Series 27 - CFRP Slow Helix, Square End End Mill - 72985

Specifications

Series
27
Unit of Measure
Fractional
Diameter
3/4 Inch
Length of Cut
1-3/8 Inch
Shank Size
3/4 Inch
Number Of Flutes
4
Shank Type
Straight
Overall Length
4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Diamond
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1.38
Length of Cut (Metric)
34.93
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
12 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0030
Cutting Diameter Tolerance (Metric)
+0.000/-0.080
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Di-NAMITE (Diamond)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
SGS 3/4" Dia, 4 Flute, Square End End Mill - 72985
$2,430.72
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
