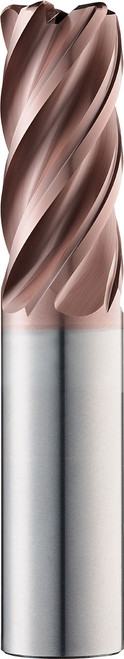

SGS Corner Radius End Mill: 3/4" Dia, 1-1/2" LOC, 4" OAL, .010" Corner Radius, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 38864

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-38864
$724.24

SGS Z5C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, Weldon flat shank, external coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 38864.

Specifications

Series
Z5C
Unit of Measure
Inch
Shank Diameter (Fractional)
3/4
Length of Cut (Fractional)
1-1/2
Number of Flutes
5
Shank Type
Weldon Flat
Overall Length (Fractional)
4
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-M
Cutting Diameter (Decimal)
0.7500
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1.5000
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
0.7500
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4.0000
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
37 degrees
Helix Direction
Right
Cutting Diameter (Fractional)
3/4
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.2630
Non-Cutting Center Diameter (Metric)
6.68
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Corner Radius
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Z-Carb-HPR
Size System
Fractional
Corner Radius (Decimal)
0.0100
Corner Radius (Metric)
0.25
Hand Direction
Right
Length Type
Standard
SGS Corner Radius End Mill: 3/4" Dia, 1-1/2" LOC, 4" OAL, .010" Corner Radius, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 38864
$724.24
