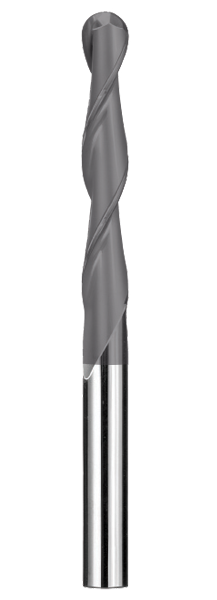

SGS 3/8" Dia, 2 Flute, Ball Nose End Mill - 31992

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-31992
$199.32
SGS 3/8" Dia, 1-3/4" LOC, 3/8" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series E3B, Ball Nose End Mill - 31992

Specifications

Series
E3B
Unit of Measure
Fractional
Length of Cut
1-3/4 Inch
Shank Size
3/8 Inch
Number Of Flutes
2
Shank Type
Straight
Overall Length
4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-A (AlTiN)
Cutting Diameter (Decimal)
0.38
Cutting Diameter (Metric)
9.53
Length of Cut (Decimal)
1.75
Length of Cut (Metric)
44.45
Shank Diameter (Decimal)
0.38
Shank Diameter (Metric)
9.53
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0010
Corner Radius Tolerance (Metric)
+0.000/-0.025
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Cutting Diameter
3/8 Inch
SGS 3/8" Dia, 2 Flute, Ball Nose End Mill - 31992
$199.32
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
