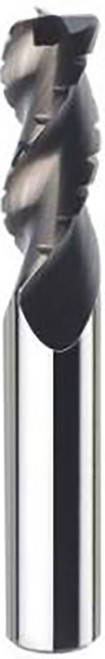

SGS 3/8" Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 33463

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-33463
$229.43
SGS 3/8" Dia, 1-1/2" LOC, 3/8" Shank Dia, 0.0200" Radius, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43CB, S-Carb, Chip Breaker Corner Radius End Mill - 33463

Specifications

Series
43CB
Unit of Measure
Fractional
Length of Cut
1-1/2 Inch
Shank Size
3/8 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
4 Inch
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.38
Cutting Diameter (Metric)
9.53
Length of Cut (Decimal)
1.50
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
0.38
Shank Diameter (Metric)
9.53
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00035
Cutting Diameter Tolerance (Metric)
+0.000/-0.009
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Chip Breaker / Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
S-Carb
Cutting Diameter
3/8 Inch
Corner Radius (Decimal)
0.02
Corner Radius (Metric)
0.51
SGS 3/8" Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 33463
$229.43
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
