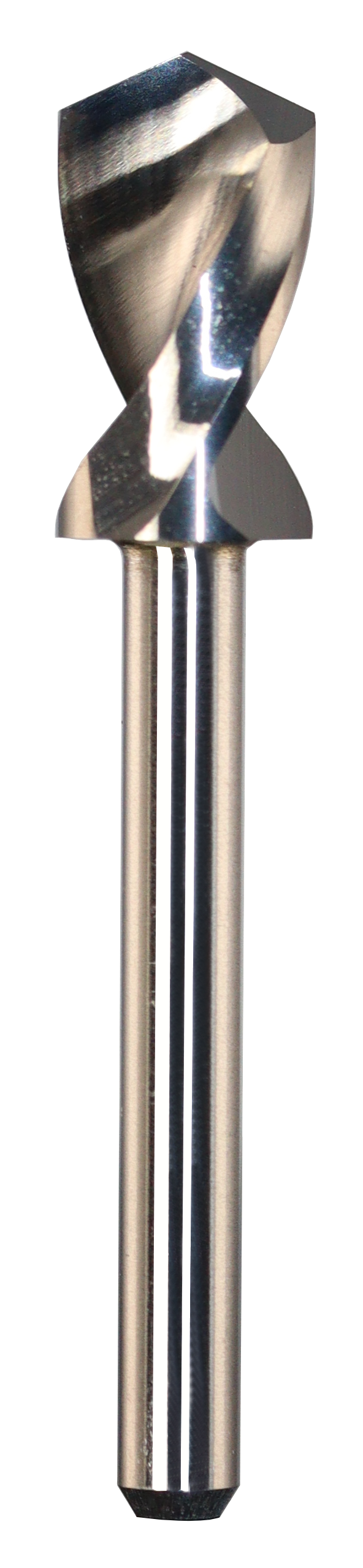

SGS 3.80mm Dia, 145 Degree Point, Solid Carbide Drill - 64108

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-64108
$266.98
SGS 3.80mm Dia, 145 Degree Point, 6.00mm Shank Dia, 74.00mm OAL, 2 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 135L, Hi-PerCarb 135, Solid Carbide Drill - 64108

Specifications

Series
135L
Unit of Measure
Metric
Diameter
3.80 mm
Shank Size
6 mm
Overall Length
74 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.15
Shank Diameter (Decimal)
0.24
Overall Length (Decimal)
2.92
Flute Type
Spiral
Helix Angle
32 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (H) Hardened Materials"
Secondary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00016 / +.00063
Cutting Diameter Tolerance (Metric)
+.0041 / +.0160
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
145 degrees
Flute Length (Decimal)
1.42
Number of Margins
4
Flute Length
36 mm
Usable Length (Decimal)
1.15
Usable Length (Metric)
29
Self Centering
Yes
Length Of Cut
5 x D
SGS 3.80mm Dia, 145 Degree Point, Solid Carbide Drill - 64108
$266.98
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
