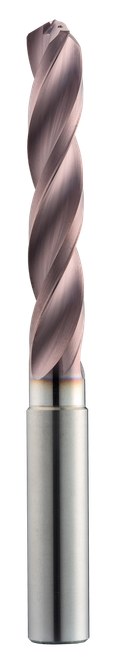

SGS 33/64" Dia, 124 Degree Point, 0.5512" Shank Dia, 4.8820" OAL, 3 Flute, 5xD, Coolant-Through, Ti-NAMITE-M (TM) Coated, Series 141K, Hi-PerCarb 141K, Solid Carbide Drill - 55189
Specifications
Unit of Measure
Fractional
Cutting Diameter (Decimal)
0.52
Cutting Diameter (Metric)
13.10
Shank Diameter (Decimal)
0.56
Shank Diameter (Metric)
14
Overall Length (Decimal)
4.89
Overall Length (Metric)
124
Primary Workpiece Material
(K) Cast Iron
Secondary Workpiece Material
(P) Steel|(M) Stainless Steel|(N) Non-Ferrous Materials|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00028 / +.00098
Cutting Diameter Tolerance (Metric)
+.0071 / +.0251
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-M (TM)
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
3.04
Flute Length (Metric)
77.01
Usable Length (Decimal)
2.37
Usable Length (Metric)
60
