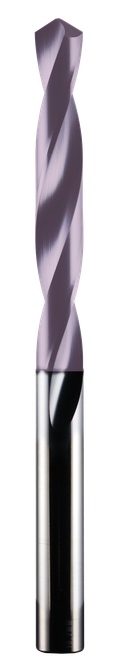

SGS 4.20mm Dia, 118 Degree Point, Solid Carbide Drill - 61077

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-61077
$71.96
SGS 4.20mm Dia, 118 Degree Point, 4.20mm Shank Dia, 75.00mm OAL, 2 Flute, 5xD, Uncoated, Series 101, Solid Carbide Drill - 61077

Specifications

Series
101
Unit of Measure
Metric
Diameter
4.20 mm
Shank Size
4.20 mm
Overall Length
75 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.17
Shank Diameter (Decimal)
0.17
Overall Length (Decimal)
2.96
Flute Type
Spiral
Helix Angle
20 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00050
Cutting Diameter Tolerance (Metric)
+.0000 / -.0127
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Uncoated
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
118 degrees
Flute Length (Decimal)
1.70
DIN Standard
DIN 338
Number of Margins
2
Flute Length
43 mm
Usable Length (Decimal)
1.34
Usable Length (Metric)
34
Length Of Cut
5 x D
SGS 4.20mm Dia, 118 Degree Point, Solid Carbide Drill - 61077
$71.96
