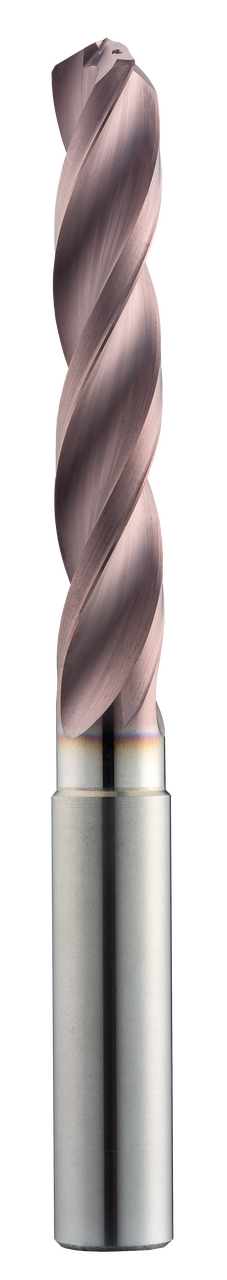

SGS 4.40mm Dia, 124 Degree Point, Solid Carbide Drill - 67614

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-67614
$196.85
SGS 4.40mm Dia, 124 Degree Point, 6.00mm Shank Dia, 66.00mm OAL, 3 Flute, 3xD, Ti-NAMITE-B (TIB2) Coated, Series 131N, Hi-PerCarb 131N, Solid Carbide Drill - 67614

Specifications

Series
131N
Unit of Measure
Metric
Diameter
4.40 mm
Shank Size
6 mm
Overall Length
66 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.18
Shank Diameter (Decimal)
0.24
Overall Length (Decimal)
2.60
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00016 / +.00063
Cutting Diameter Tolerance (Metric)
+.0041 / +.0160
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
124 degrees
Flute Length (Decimal)
0.95
DIN Standard
DIN 6537
Number of Margins
3
Flute Length
24 mm
Usable Length (Decimal)
0.67
Usable Length (Metric)
17
Self Centering
Yes
Length Of Cut
3 x D
SGS 4.40mm Dia, 124 Degree Point, Solid Carbide Drill - 67614
$196.85
