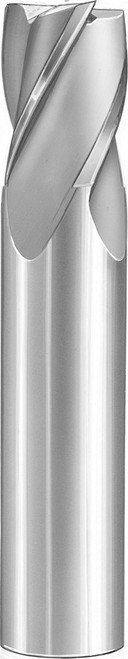

SGS 5.00mm Dia, 4 Flute, Square End End Mill - 41637

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-41637
$47.63
SGS 5.00mm Dia, 10.00mm LOC, 5.00mm Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 16S, Square End End Mill - 41637

Specifications

Series
16S
Unit of Measure
Metric
Diameter
5 mm
Length of Cut
10 mm
Shank Size
5 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
50 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.20
Length of Cut (Decimal)
0.40
Shank Diameter (Decimal)
0.20
Overall Length (Decimal)
1.97
Flute Type
Spiral
Helix Angle
30 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Uncoated
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 5.00mm Dia, 4 Flute, Square End End Mill - 41637
$47.63
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
