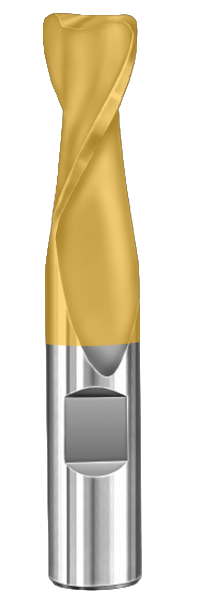

SGS Corner Radius End Mill: 5/16" Dia, .812" LOC, 2-1/2" OAL, .045" Corner Radius, 2 Flute, TiN (Ti-NAMITE), Solid Carbide, 38238

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-38238
$103.62

SGS 03C corner radius end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiN coating. Manufacturer part number 38238.

Specifications

Series
03C
Unit of Measure
Inch
Shank Diameter (Fractional)
5/16
Number of Flutes
2
Shank Type
Straight
Overall Length (Fractional)
2-1/2
Material
Solid Carbide
Coating/Finish
TiN
Cutting Diameter (Decimal)
0.3125
Cutting Diameter (Metric)
7.94
Length of Cut (Decimal)
0.8120
Length of Cut (Metric)
20.62
Shank Diameter (Decimal)
0.3125
Shank Diameter (Metric)
7.94
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Fractional)
5/16
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
-0.0010/-0.0020
Cutting Diameter Tolerance (Metric)
-0.025/-0.050
Size System
Fractional
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
General Purpose
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Shank Length (Decimal)
1.6880
Corner Radius (Decimal)
0.0450
Corner Radius (Metric)
1.14
Length Type
Standard
Rake
Positive
Shank Length (Metric)
42.88
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Corner Radius End Mill: 5/16" Dia, .812" LOC, 2-1/2" OAL, .045" Corner Radius, 2 Flute, TiN (Ti-NAMITE), Solid Carbide, 38238
$103.62
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
