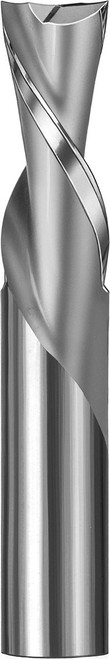

SGS 5/16" Dia, 2 Flute, Router - 91025

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-91025
$183.42
SGS 5/16" Dia, 1" LOC, 3" OAL, 1/2" Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 22S, Wood Router Down Cut - 91025

Specifications

Series
22S
Unit of Measure
Fractional
Diameter
5/16 Inch
Length of Cut
1 Inch
Shank Size
1/2 Inch
Number Of Flutes
2
Shank Type
Straight
Overall Length
3 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.32
Cutting Diameter (Metric)
7.94
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.50
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
35 degrees
End Configuration
Square End
Tool Length
Regular
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0030
Cutting Diameter Tolerance (Metric)
+0.000/-0.080
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Unit (inch/mm)
inch
SGS 5/16" Dia, 2 Flute, Router - 91025
$183.42
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
