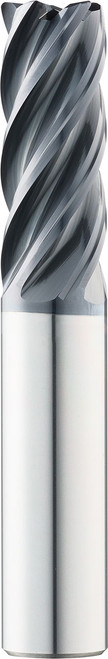

SGS Square End Mill: 5/16" Dia, 7/16" LOC, 2-1/2" OAL, 5 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 38503

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-38503
$117.12

SGS Z5S square end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 38503.

Specifications

Series
Z5S
Unit of Measure
Inch
Shank Diameter (Fractional)
5/16
Length of Cut (Fractional)
7/16
Overall Length (Fractional)
2-1/2
Number of Flutes
5
Shank Type
Straight
Size System
Fractional
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.3125
Cutting Diameter (Metric)
7.94
Length of Cut (Decimal)
0.4375
Length of Cut (Metric)
11.11
Shank Diameter (Decimal)
0.3125
Shank Diameter (Metric)
7.94
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
37 degrees
End Type
Square
Performance Class
High Performance
Cutting Diameter (Fractional)
5/16
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.1090
Non-Cutting Center Diameter (Metric)
2.77
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0016
Cutting Diameter Tolerance (Metric)
+0.000/-0.040
Shank Tolerance
h6
Coolant Option
External Coolant
Helix Direction
Right
Length Type
Stub
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Rake
Positive
