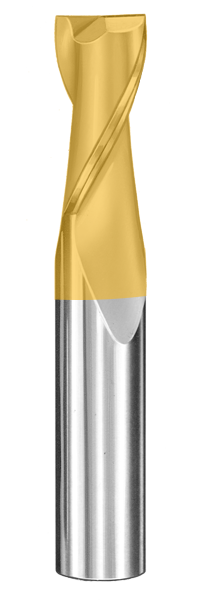

SGS Square End Mill: 5/64" Dia, .187" LOC, 1-1/2" OAL, 2 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 30435

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-30435
$41.16

SGS 03S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 30435.

Specifications

Series
03S
Unit of Measure
Inch
Shank Diameter (Fractional)
1/8
Overall Length (Fractional)
1-1/2
Number of Flutes
2
Shank Type
Straight
Shank Length (Decimal)
1.3130
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.0781
Cutting Diameter (Metric)
1.98
Length of Cut (Decimal)
0.1870
Length of Cut (Metric)
4.75
Shank Diameter (Decimal)
0.1250
Shank Diameter (Metric)
3.18
Overall Length (Decimal)
1.5000
Overall Length (Metric)
38.10
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Fractional
Cutting Diameter (Fractional)
5/64
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
Cutting Diameter Tolerance (Metric)
+0.000/-0.025
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
33.35
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Length Type
Standard
