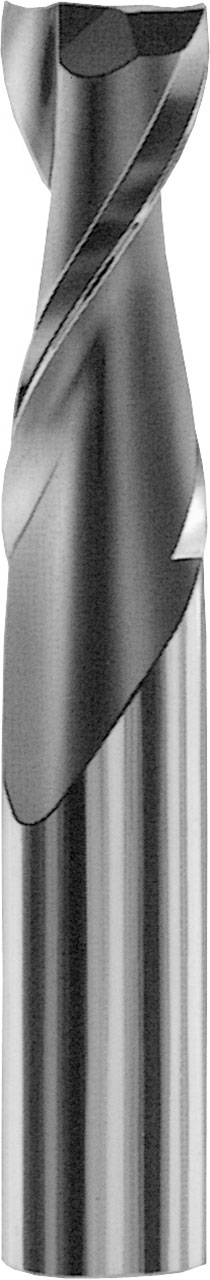

SGS 5/8" Dia, 2 Flute, Router - 90049

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-90049
$552.23
SGS 5/8" Dia, 2" LOC, 4-1/2" OAL, 5/8" Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 21S, Wood Router Up Cut - 90049

Specifications

Series
21S
Unit of Measure
Fractional
Diameter
5/8 Inch
Length of Cut
2 Inch
Shank Size
5/8 Inch
Number Of Flutes
2
Shank Type
Straight
Overall Length
4-1/2 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.63
Cutting Diameter (Metric)
15.88
Length of Cut (Decimal)
2
Length of Cut (Metric)
50.80
Shank Diameter (Decimal)
0.63
Shank Diameter (Metric)
15.88
Overall Length (Decimal)
4.50
Overall Length (Metric)
114.30
Flute Type
Spiral
Helix Angle
35 degrees
End Configuration
Square End
Tool Length
Regular
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0030
Cutting Diameter Tolerance (Metric)
+0.000/-0.080
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Unit (inch/mm)
inch
SGS 5/8" Dia, 2 Flute, Router - 90049
$552.23
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
