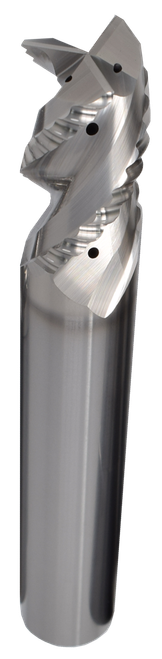

SGS 5/8" Dia, 1-3/8" LOC, 2-5/8" Reach, 5/8" Shank Dia, 0.0900" Radius, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR3, S-Carb APR-3, Chip Breaker Corner Radius End Mill - 34110
Specifications
Unit of Measure
Fractional
Overall Length
4-1/4 Inch
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.63
Cutting Diameter (Metric)
15.88
Length of Cut (Decimal)
1.38
Length of Cut (Metric)
34.93
Shank Diameter (Decimal)
0.63
Shank Diameter (Metric)
15.88
Overall Length (Decimal)
4.25
Overall Length (Metric)
107.95
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.60
Neck Diameter (Metric)
15.09
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0039
Cutting Diameter Tolerance (Metric)
+0.010/-0.100
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0020/-0.0020
Corner Radius Tolerance (Metric)
+0.050/-0.050
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Cutting Diameter
5/8 Inch
Corner Radius (Decimal)
0.09
Corner Radius (Metric)
2.29
