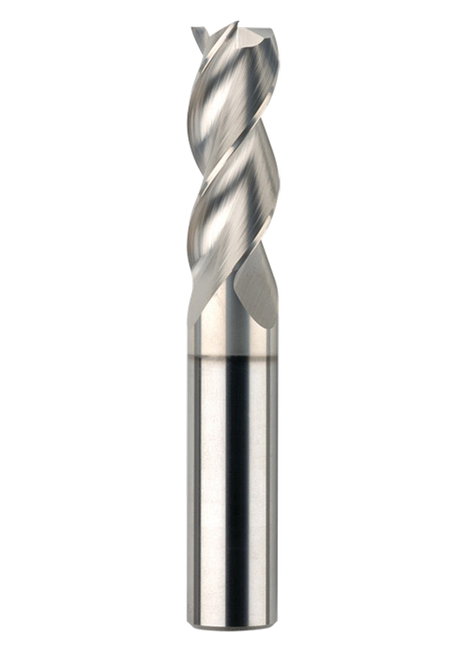

SGS Square End Mill: 5/8" Dia, 3/4" LOC, 3" OAL, 3 Flute, TiB2, Solid Carbide, 34743

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34743
$395.56

SGS 43S square end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiB2 coating. Manufacturer part number 34743.

Specifications

Series
43S
Unit of Measure
Inch
Cutting Diameter (Fractional)
5/8
Shank Diameter (Fractional)
5/8
Length of Cut (Fractional)
3/4
Number of Flutes
3
Shank Type
Straight
Overall Length (Fractional)
3
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
TiB2
Cutting Diameter (Decimal)
0.6250
Cutting Diameter (Metric)
15.88
Length of Cut (Decimal)
0.7500
Length of Cut (Metric)
19.05
Shank Diameter (Decimal)
0.6250
Shank Diameter (Metric)
15.88
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Fractional)
2-1/4
Shank Length (Metric)
57.15
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00043
Cutting Diameter Tolerance (Metric)
+0.000/-0.011
Helix Direction
Right
Coolant Option
External Coolant
Shank Length (Decimal)
2.2500
End Type
Square
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Length Type
Stub
Size System
Fractional
Workpiece Material
Non-Ferrous
