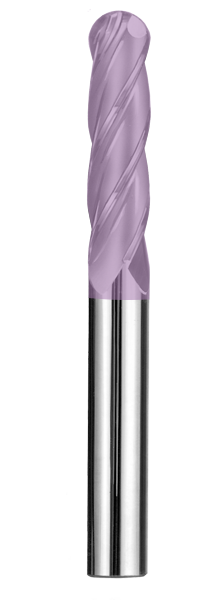

SGS 5/8" Dia, 4 Flute, Ball Nose End Mill - 31787

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-31787
$499.93
SGS 5/8" Dia, 2-1/4" LOC, 5/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series L1B, Ball Nose End Mill - 31787

Specifications

Series
L1B
Unit of Measure
Fractional
Length of Cut
2-1/4 Inch
Shank Size
5/8 Inch
Number Of Flutes
4
Shank Type
Straight
Overall Length
5 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-C (TiCN)
Cutting Diameter (Decimal)
0.63
Cutting Diameter (Metric)
15.88
Length of Cut (Decimal)
2.25
Length of Cut (Metric)
57.15
Shank Diameter (Decimal)
0.63
Shank Diameter (Metric)
15.88
Overall Length (Decimal)
5
Overall Length (Metric)
127
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0010
Corner Radius Tolerance (Metric)
+0.000/-0.025
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Cutting Diameter
5/8 Inch
SGS 5/8" Dia, 4 Flute, Ball Nose End Mill - 31787
$499.93
