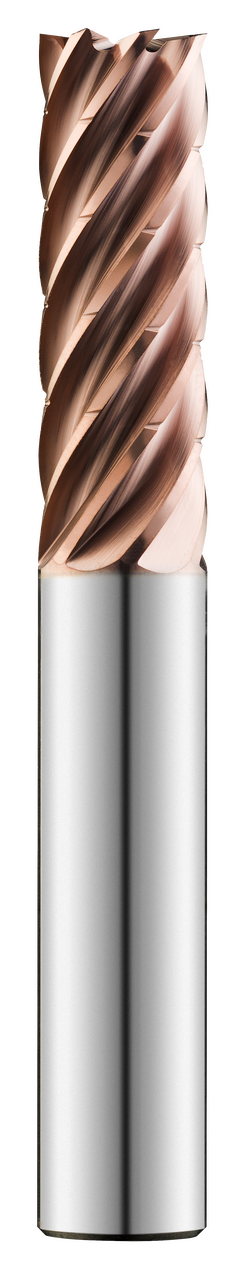

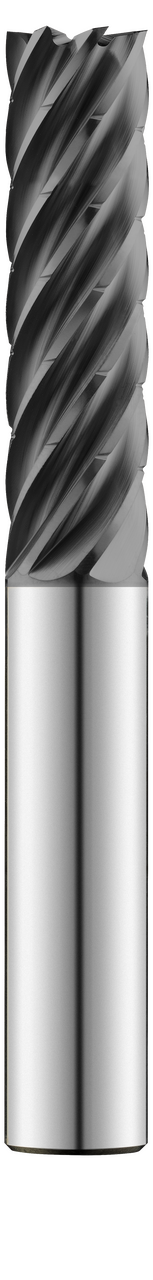

SGS 5/8" Dia, 7 Flute, Chip Breaker Square End Mill - 77222

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-77222
$521.98
SGS 5/8" Dia, 1-7/8" LOC, 5/8" Shank Dia, 7 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77S, H-Carb, Chip Breaker Square End Mill - 77222

Specifications

Series
77S
Unit of Measure
Fractional
Diameter
5/8 Inch
Length of Cut
1-7/8 Inch
Shank Size
5/8 Inch
Number Of Flutes
7
Shank Type
Straight
Overall Length
4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.63
Cutting Diameter (Metric)
15.88
Length of Cut (Decimal)
1.88
Length of Cut (Metric)
47.63
Shank Diameter (Decimal)
0.63
Shank Diameter (Metric)
15.88
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
37 degrees
End Configuration
Chip Breaker (Square)
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Non-Cutting Center Diameter (Decimal)
0.22
Non-Cutting Center Diameter (Metric)
5.37
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Shank Diameter Tolerance (Decimal)
+0.0000 / -0.00043
Shank Diameter Tolerance (Metric)
+0.0000 / -0.0011
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Chip Breaker / Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
Yes
SGS 5/8" Dia, 7 Flute, Chip Breaker Square End Mill - 77222
$521.98
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
