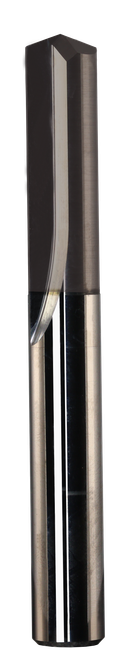

SGS Screw Machine Drill: #50 Wire (.070") Dia, 11/16" Flute Length, 1-11/16" OAL, 140° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 56259

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-56259
$45.42

SGS Series 106 screw machine drill for steel and cast iron, 2 flutes, 0 degree helix, 140 degree point, straight flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 56259.

Specifications

Series
106
Unit of Measure
Inch
Shank Diameter (Decimal)
0.0700
Flute Length (Decimal)
0.6875
Overall Length (Decimal)
1.6875
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
1.78
Shank Diameter (Metric)
1.78
Overall Length (Metric)
42.86
Overall Length (Fractional)
1-11/16
Flute Type
Straight
Cutting Diameter (Decimal)
0.0700
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.00000 / -0.00050
Cutting Diameter Tolerance (Metric)
+0.0000 / -0.0099
Helix Angle
0 degrees
Coolant Option
External Coolant
Coating/Finish
AlTiN
Number of Flutes
2
Shank Type
Straight
Performance Class
General Purpose
Variable Helix
No
Shank Length (Decimal)
1.0470
Chip Breaker
No
Point Angle
140 degrees
Cutting Diameter (Wire)
#50
Flute Length (Metric)
17.46
Flute Length (Fractional)
11/16
Number of Margins
2
Shank Length (Metric)
26.59
Usable Length (Decimal)
0.5469
Usable Length (Metric)
13.89
Usable Length (Fractional)
35/64
Reach Multiple
3xD
Shank Tolerance
h6
Size System
Wire
Workpiece Material
Steel, Cast Iron
SGS Screw Machine Drill: #50 Wire (.070") Dia, 11/16" Flute Length, 1-11/16" OAL, 140° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 56259
$45.42
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
