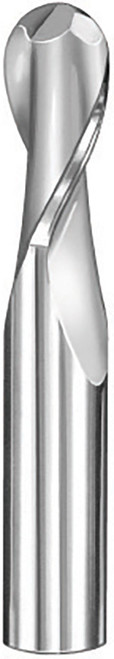

SGS Ball End Mill: 6.00mm Dia, 19.00mm LOC, 50.00mm OAL, 2 Flute, Bright/Uncoated, Solid Carbide, 40342

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-40342
$67.36

SGS 03B ball end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 40342.

Specifications

Series
03B
Unit of Measure
Metric
Shank Diameter (Metric)
6.00
Length of Cut (Metric)
19.00
Number of Flutes
2
Shank Type
Straight
Overall Length (Metric)
50.00
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.2362
Length of Cut (Decimal)
0.7480
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
1.9685
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Metric)
6.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0010
Corner Radius Tolerance (Metric)
+0.000/-0.025
Coolant Option
External Coolant
Helix Direction
Right
Chip Breaker
No
End Type
Ball
Performance Class
General Purpose
Variable Helix
No
Center Cutting
Yes
Shank Length (Decimal)
1.2220
Length Type
Long
Rake
Positive
Shank Length (Metric)
31.04
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
