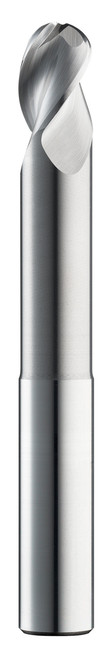

SGS 6.00mm Dia, 3 Flute, Ball Nose End Mill - 44927

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44927
$188.04
SGS 6.00mm Dia, 18.00mm LOC, 31.00mm Reach, 6.00mm Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43MB, S-Carb, Ball Nose End Mill - 44927

Specifications

Series
43MB
Unit of Measure
Metric
Length of Cut
18 mm
Shank Size
6 mm
Number Of Flutes
3
Shank Type
Straight
Overall Length
75 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.24
Length of Cut (Decimal)
0.71
Shank Diameter (Decimal)
0.24
Overall Length (Decimal)
2.96
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Reach (Decimal)
1.23
Reach (Metric)
31
Neck Diameter (Decimal)
0.22
Neck Diameter (Metric)
5.49
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00032
Cutting Diameter Tolerance (Metric)
+0.000/-0.008
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Cutting Diameter
6 mm
SGS 6.00mm Dia, 3 Flute, Ball Nose End Mill - 44927
$188.04
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
