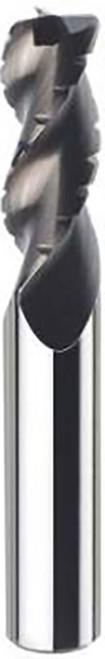

SGS Corner Radius End Mill: 6.00mm Dia, 19.00mm LOC, 63.00mm OAL, 0.50mm Corner Radius, 3 Flute, TiB2, Solid Carbide, 44299

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44299
$170.28

SGS 43CB corner radius end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiB2 coating. Manufacturer part number 44299.

Specifications

Series
43CB
Unit of Measure
Metric
Cutting Diameter (Metric)
6.00
Shank Diameter (Metric)
6.00
Number of Flutes
3
Shank Type
Straight
Length of Cut (Metric)
19.00
Material
Solid Carbide
Coating/Finish
TiB2
Cutting Diameter (Decimal)
0.2362
Length of Cut (Decimal)
0.7480
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
2.4803
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Metric)
44.00
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00032
Cutting Diameter Tolerance (Metric)
+0.000/-0.008
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
S-Carb
Overall Length (Metric)
63.00
Corner Radius (Decimal)
0.0197
Shank Length (Decimal)
1.7324
Corner Radius (Metric)
0.50
Length Type
Long
Maximum Workpiece Hardness
150 HB
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Corner Radius End Mill: 6.00mm Dia, 19.00mm LOC, 63.00mm OAL, 0.50mm Corner Radius, 3 Flute, TiB2, Solid Carbide, 44299
$170.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
