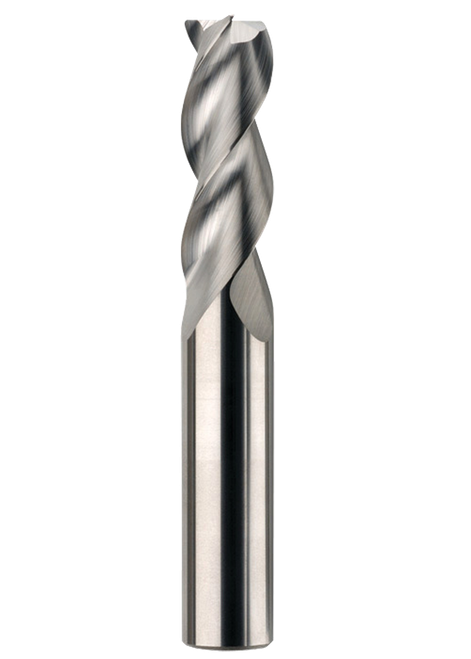

SGS 6.00mm Dia, 3 Flute, Corner Radius End Mill - 44894

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44894
$111.64
SGS 6.00mm Dia, 13.00mm LOC, 6.00mm Shank Dia, 1.00mm Radius, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43MR, S-Carb, Corner Radius End Mill - 44894

Specifications

Series
43MR
Unit of Measure
Metric
Length of Cut
13 mm
Shank Size
6 mm
Number Of Flutes
3
Shank Type
Straight
Overall Length
57 mm
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.24
Length of Cut (Decimal)
0.52
Shank Diameter (Decimal)
0.24
Overall Length (Decimal)
2.25
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00032
Cutting Diameter Tolerance (Metric)
+0.000/-0.008
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Type
S-Carb
Cutting Diameter
6 mm
Corner Radius (Decimal)
0.04
Corner Radius
1 mm
SGS 6.00mm Dia, 3 Flute, Corner Radius End Mill - 44894
$111.64
