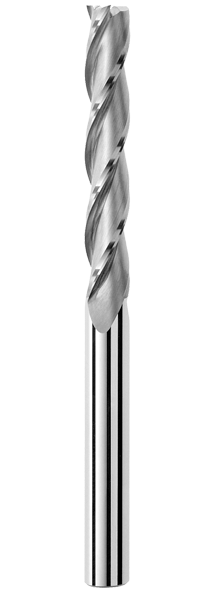

SGS 6.00mm Dia, 3 Flute, Square End End Mill - 43505

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-43505
$89.96
SGS 6.00mm Dia, 25.00mm LOC, 6.00mm Shank Dia, 3 Flute, 30 Degree Helix, Uncoated, Series X5S, Square End End Mill - 43505

Specifications

Series
X5S
Unit of Measure
Metric
Shank Diameter (Metric)
6.00
Length of Cut (Metric)
25.00
Overall Length (Metric)
75.00
Number of Flutes
3
Shank Type
Straight
Shank Length (Decimal)
1.9660
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.2362
Length of Cut (Decimal)
0.9843
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
2.9528
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Metric
Cutting Diameter (Metric)
6.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
49.94
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Length Type
Extra Long
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS 6.00mm Dia, 3 Flute, Square End End Mill - 43505
$89.96
