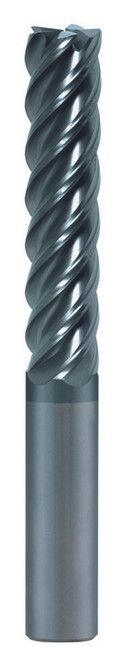

SGS Square End Mill: 6.00mm Dia, 19.00mm LOC, 63.00mm OAL, 5 Flute, AlTiN, 6.00mm Shank, 42607

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-42607
$99.33

Cut slots, shoulders, pockets and profiles with this 6.00mm 5-flute solid carbide square end mill.

SGS Series 55M square end mills are made for steel, stainless steel, cast iron and high-temp alloys.

  • Cutting diameter: 6.00mm
  • Length of cut: 19.00mm
  • Overall length: 63.00mm
  • Shank diameter: 6.00mm
  • Number of flutes: 5
  • Coating/finish: AlTiN
  • Material: Solid Carbide
  • Workpiece material: Steel, Stainless Steel, Cast Iron, High-Temp Alloy

SGS part number 42607.

Specifications

Series
55M
Unit of Measure
Metric
Shank Diameter (Metric)
6.00
Length of Cut (Metric)
19.00
Overall Length (Metric)
63.00
Number of Flutes
5
Shank Type
Straight
Shank Length (Decimal)
1.7323
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.2362
Length of Cut (Decimal)
0.7480
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
2.4803
Flute Type
Spiral
Helix Angle
45 degrees
Size System
Metric
Cutting Diameter (Metric)
6.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
44.00
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Long
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Maximum Workpiece Hardness
45 HRC
SGS Square End Mill: 6.00mm Dia, 19.00mm LOC, 63.00mm OAL, 5 Flute, AlTiN, 6.00mm Shank, 42607
$99.33
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
