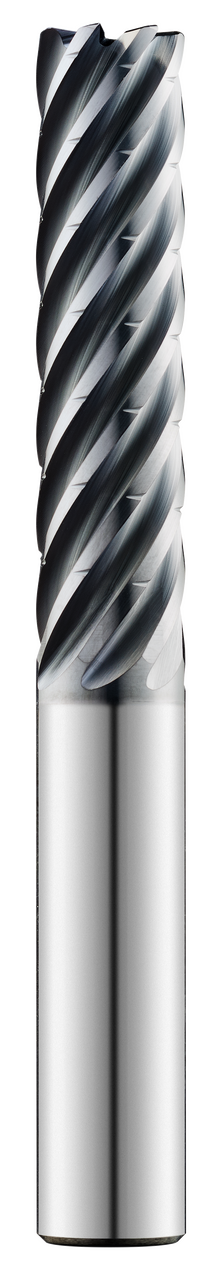

SGS Corner Radius End Mill: 6.00mm Dia, 19.00mm LOC, 63.00mm OAL, 0.50mm Corner Radius, 7 Flute, TX (Ti-NAMITE-X), Solid Carbide, 46627

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46627
$127.78

SGS 66MC corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 7 flutes, 35 degree helix, spiral flutes, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 46627.

Specifications

Series
66MC
Unit of Measure
Metric
Shank Diameter (Metric)
6.00
Length of Cut (Metric)
19.00
Number of Flutes
7
Overall Length (Metric)
63.00
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X
Cutting Diameter (Decimal)
0.2362
Length of Cut (Decimal)
0.7480
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
2.4803
Flute Type
Spiral
Helix Angle
35 degrees
Cutting Diameter (Metric)
6.00
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.0642
Non-Cutting Center Diameter (Metric)
1.63
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Multi-Carb
Shank Length (Decimal)
1.6926
Corner Radius (Decimal)
0.0197
Shank Length (Metric)
42.99
Corner Radius (Metric)
0.50
Length Type
Long
Maximum Workpiece Hardness
45 HRC
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
