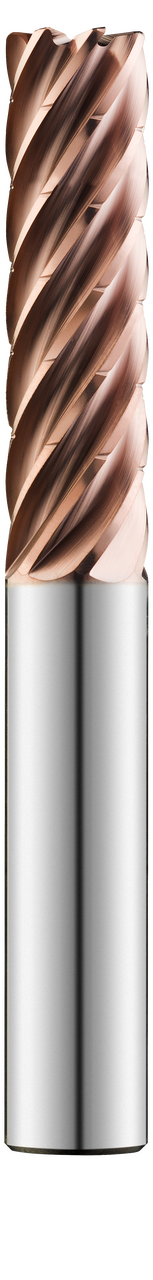

SGS Corner Radius End Mill: 6.00mm Dia, 15.00mm LOC, 63.00mm OAL, 0.30mm Corner Radius, 7 Flute, TM (Ti-NAMITE-M), Solid Carbide, 74305

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-74305
$126.43

SGS 77MC corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 7 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 74305.

Specifications

Series
77MC
Unit of Measure
Metric
Shank Diameter (Metric)
6.00
Length of Cut (Metric)
15.00
Number of Flutes
7
Shank Type
Straight
Overall Length (Metric)
63.00
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-M
Cutting Diameter (Decimal)
0.2362
Length of Cut (Decimal)
0.5906
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
2.4803
Flute Type
Spiral
Helix Angle
37 degrees
Cutting Diameter (Metric)
6.00
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.0799
Non-Cutting Center Diameter (Metric)
2.03
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0012
Cutting Diameter Tolerance (Metric)
+0.000/-0.030
Hand Direction
Right
Shank Diameter Tolerance (Decimal)
+0.0000 / -0.00032
Shank Diameter Tolerance (Metric)
+0.0000 / -0.008
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
End Type
Corner Radius
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
H-Carb
Corner Radius (Metric)
0.30
Corner Radius (Decimal)
0.0120
Size System
Metric
Helix Direction
Right
Length Type
Standard
Maximum Workpiece Hardness
45 HRC
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
