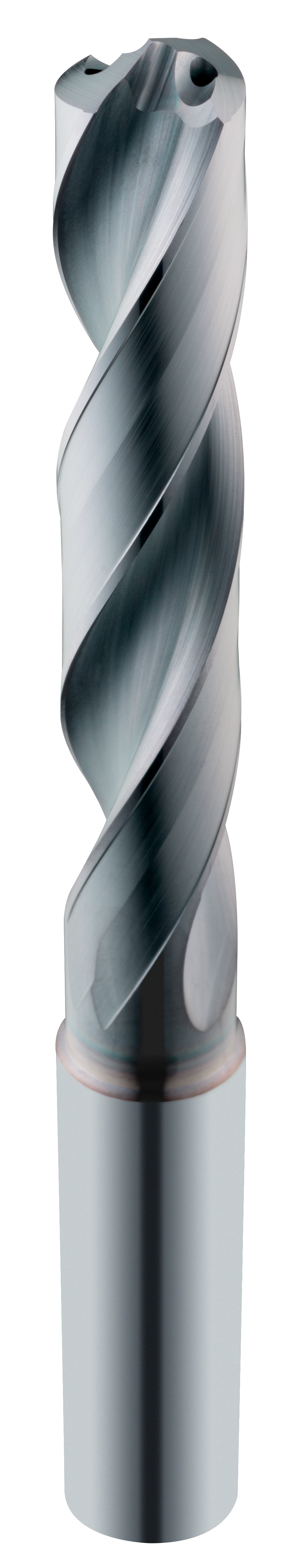

SGS 6.60mm Dia, 135 Degree Point, 8.00mm Shank Dia, 91.00mm OAL, 2 Flute, 5xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 66539
Specifications
Cutting Diameter (Decimal)
0.26
Shank Diameter (Decimal)
0.32
Overall Length (Decimal)
3.59
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00024 / +.00083
Cutting Diameter Tolerance (Metric)
+.0061 / +.0211
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
2.09
Usable Length (Decimal)
1.70
Usable Length (Metric)
43
Point Length (Decimal)
0.06
Point Length (Metric)
1.37
