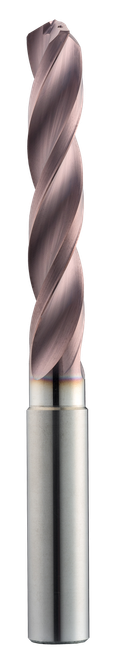

SGS Screw Machine Drill: 7.00mm Dia, 53.00mm Flute Length, 91.00mm OAL, 124° Point, Internal Coolant, TM (Ti-NAMITE-M), Solid Carbide, 65200

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-65200
$377.24

SGS 141K screw machine drill for cast iron, 3 flutes, 30 degree helix, 124 degree point, spiral flutes, straight shank, internal coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 65200.

Specifications

Series
141K
Unit of Measure
Metric
Shank Diameter (Metric)
8.00
Flute Length (Metric)
53.00
Overall Length (Metric)
91.00
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.2756
Shank Diameter (Decimal)
0.3150
Overall Length (Decimal)
3.5827
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Metric
Secondary Workpiece Material
Steel, Stainless Steel, Non-Ferrous, High-Temp Alloy
Cutting Diameter Tolerance (Decimal)
+0.00024 / +0.00083
Cutting Diameter Tolerance (Metric)
+0.0061 / +0.0211
Number of Flutes
3
Coolant Option
Internal Coolant
Coating/Finish
Ti-NAMITE-M
Shank Type
Straight
Helix Direction
Right
Performance Class
High Performance
Variable Helix
No
Shank Length (Decimal)
1.4170
Chip Breaker
No
Point Angle
124 degrees
Flute Length (Decimal)
2.0866
DIN Standard
DIN 6537
Number of Margins
3
Shank Length (Metric)
35.99
Usable Length (Decimal)
1.6929
Usable Length (Metric)
43.00
Self Centering
Yes
Reach Multiple
5xD
Cutting Diameter (Metric)
7.00
Shank Tolerance
h6
Workpiece Material
Cast Iron
