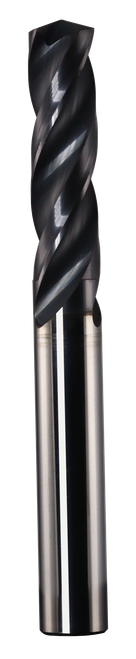

SGS 7/16" Dia, 150 Degree Point, Solid Carbide Drill - 58094

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-58094
$388.49
SGS 7/16" Dia, 150 Degree Point, 7/16" Shank Dia, 4-1/2" OAL, 3 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 103, Solid Carbide Drill - 58094

Specifications

Series
103
Unit of Measure
Fractional
Diameter
7/16 Inch
Shank Size
7/16 Inch
Overall Length
4-1/2 Inch
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.44
Cutting Diameter (Metric)
11.11
Shank Diameter (Decimal)
0.44
Shank Diameter (Metric)
11.11
Overall Length (Decimal)
4.50
Overall Length (Metric)
114.30
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (K) Cast Iron, (N) Non-Ferrous Materials"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00050
Cutting Diameter Tolerance (Metric)
+.0000 / -.0127
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
150 degrees
Flute Length (Decimal)
2.88
Flute Length (Metric)
73.03
Number of Margins
3
Flute Length
2-7/8 Inch
Usable Length (Decimal)
2.30
Usable Length (Metric)
58.34
Usable Length (Fractional)
2-19/64
Length Of Cut
5 x D
SGS 7/16" Dia, 150 Degree Point, Solid Carbide Drill - 58094
$388.49
