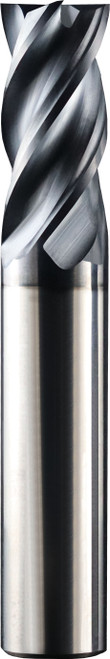

SGS 7/16" Dia, 4 Flute, Square End End Mill - 36532

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-36532
$176.48
SGS 7/16" Dia, 1" LOC, 7/16" Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1S, Z-Carb, Square End End Mill - 36532

Specifications

Series
Z1S
Unit of Measure
Fractional
Diameter
7/16 Inch
Length of Cut
1 Inch
Shank Size
7/16 Inch
Number Of Flutes
4
Shank Type
Weldon (Drive Flat)
Overall Length
2-3/4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TX
Cutting Diameter (Decimal)
0.44
Cutting Diameter (Metric)
11.11
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.44
Shank Diameter (Metric)
11.11
Overall Length (Decimal)
2.75
Overall Length (Metric)
69.85
Flute Type
Spiral
Helix Angle
35-38 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Variable
High Performance
Yes
Weldon Flat
Yes
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
SGS 7/16" Dia, 4 Flute, Square End End Mill - 36532
$176.48
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
