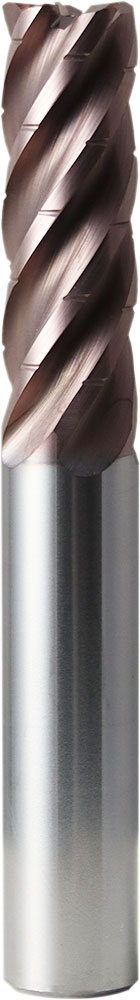

SGS Corner Radius End Mill: 7/16" Dia, 1-5/16" LOC, 3" OAL, .030" Corner Radius, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 37504

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-37504
$203.80

SGS Z5C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 37504.

Specifications

Series
Z5C
Unit of Measure
Inch
Shank Diameter (Fractional)
7/16
Length of Cut (Fractional)
1-5/16
Number of Flutes
5
Shank Type
Straight
Overall Length (Fractional)
3
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-M
Cutting Diameter (Decimal)
0.4375
Cutting Diameter (Metric)
11.11
Length of Cut (Decimal)
1.3125
Length of Cut (Metric)
33.34
Shank Diameter (Decimal)
0.4375
Shank Diameter (Metric)
11.11
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
37 degrees
Helix Direction
Right
Cutting Diameter (Fractional)
7/16
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.1530
Non-Cutting Center Diameter (Metric)
3.89
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Corner Radius
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Long
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Z-Carb-HPR
Size System
Fractional
Corner Radius (Decimal)
0.0300
Corner Radius (Metric)
0.76
Hand Direction
Right
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 7/16" Dia, 1-5/16" LOC, 3" OAL, .030" Corner Radius, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 37504
$203.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
