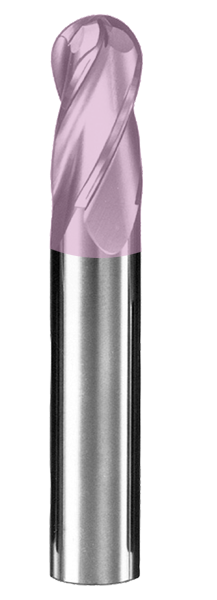

SGS 7/8" Dia, 4 Flute, Ball Nose End Mill - 30067

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-30067
$883.75
SGS 7/8" Dia, 1-1/2" LOC, 7/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 01B, Ball Nose End Mill - 30067

Specifications

Series
01B
Unit of Measure
Fractional
Length of Cut
1-1/2 Inch
Shank Size
7/8 Inch
Number Of Flutes
4
Shank Type
Straight
Overall Length
4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-A (AlTiN)
Cutting Diameter (Decimal)
0.88
Cutting Diameter (Metric)
22.23
Length of Cut (Decimal)
1.50
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
0.88
Shank Diameter (Metric)
22.23
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0010
Corner Radius Tolerance (Metric)
+0.000/-0.025
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Cutting Diameter
7/8 Inch
SGS 7/8" Dia, 4 Flute, Ball Nose End Mill - 30067
$883.75
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
