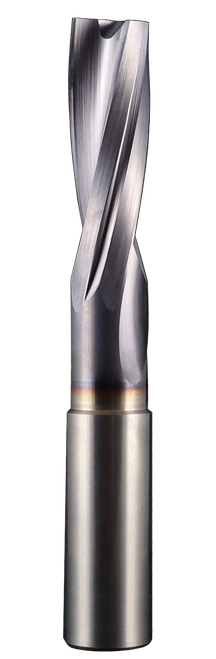

SGS Screw Machine Drill: 7.90mm Dia, 51.00mm Flute Length, 110.00mm OAL, 180° Point, Internal Coolant, TX (Ti-NAMITE-X), Solid Carbide, 67867

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-67867
$495.20

SGS 146U screw machine drill for steel, stainless steel, cast iron, non-ferrous metals, high-temp alloys and hardened steel, 2 flutes, 15 degree helix, 180 degree point, spiral flutes, straight shank, internal coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 67867.

Specifications

Series
146U
Unit of Measure
Metric
Flute Length (Metric)
51.00
Overall Length (Metric)
110.00
Shank Length (Decimal)
2.0866
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.3110
Shank Diameter (Decimal)
0.3150
Overall Length (Decimal)
4.3307
Flute Type
Spiral
Helix Angle
15 degrees
Cutting Diameter (Metric)
7.90
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.00024 / +0.00083
Cutting Diameter Tolerance (Metric)
+0.0060 / +0.0210
Number of Flutes
2
Coolant Option
Internal Coolant
Coating/Finish
Ti-NAMITE-X
Shank Type
Straight
Helix Direction
Right
Performance Class
High Performance
Variable Helix
No
Shank Length (Metric)
53.00
Chip Breaker
No
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
2.0079
Number of Margins
4
Size System
Metric
Usable Length (Decimal)
1.5944
Usable Length (Metric)
40.50
Self Centering
Yes
Reach Multiple
5xD
Maximum Workpiece Hardness
56 HRC
Shank Diameter (Metric)
8.00
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy, Hardened Steel
SGS Screw Machine Drill: 7.90mm Dia, 51.00mm Flute Length, 110.00mm OAL, 180° Point, Internal Coolant, TX (Ti-NAMITE-X), Solid Carbide, 67867
$495.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
