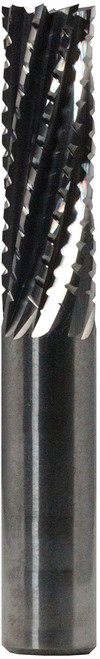

SGS 8.00mm Dia, 7 Flute, Router - 83202

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-83202
$247.46
SGS 8.00mm Dia, 25.00mm LOC, 63.00mm OAL, 8.00mm Shank Dia, 7 Flute, 15 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 31M, Series CCR CFRP Coarse Cut Router - 83202

Specifications

Series
31M
Unit of Measure
Metric
Diameter
8 mm
Length of Cut
25 mm
Shank Size
8 mm
Number Of Flutes
7
Shank Type
Straight
Overall Length
63 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.32
Length of Cut (Decimal)
0.99
Shank Diameter (Decimal)
0.32
Overall Length (Decimal)
2.49
Flute Type
Spiral
Helix Angle
15 degrees
End Configuration
Square End
Tool Length
Regular
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0050
Cutting Diameter Tolerance (Metric)
+0.000/-0.130
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Unit (inch/mm)
mm
End Style
End Cutting
SGS 8.00mm Dia, 7 Flute, Router - 83202
$247.46
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
