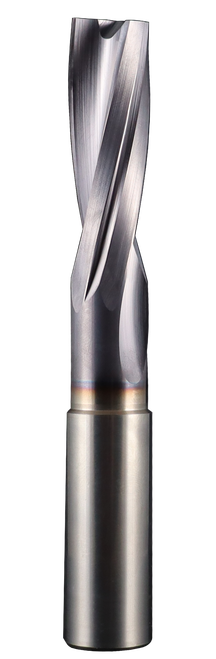

SGS 9.10mm Dia, 180 Degree Point, Solid Carbide Drill - 67768

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-67768
$551.99
SGS 9.10mm Dia, 180 Degree Point, 10.00mm Shank Dia, 80.00mm OAL, 2 Flute, 3xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 146U, Hi-PerCarb 146U Flat Bottom, Solid Carbide Drill - 67768

Specifications

Series
146U
Unit of Measure
Metric
Diameter
9.10 mm
Shank Size
10 mm
Overall Length
80 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.36
Shank Diameter (Decimal)
0.40
Overall Length (Decimal)
3.15
Flute Type
Spiral
Helix Angle
15 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy, (H) Hardened Materials"
Secondary Workpiece Material
(N) Non-Ferrous Materials|Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+.00024 / +.00083
Cutting Diameter Tolerance (Metric)
+.0060 / +.0210
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
1.62
Number of Margins
4
Flute Length
41 mm
Usable Length (Decimal)
1.12
Usable Length (Metric)
28.30
Self Centering
Yes
Length Of Cut
3 x D
