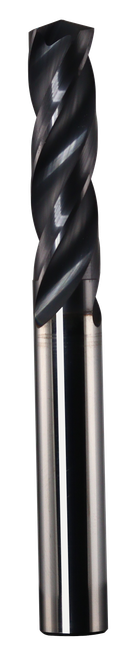

SGS Screw Machine Drill: 9.80mm Dia, 43.00mm Flute Length, 89.00mm OAL, 150° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 69033

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-69033
$362.26

SGS Series 103 screw machine drill for steel, cast iron and non-ferrous metals, 3 flutes, 30 degree helix, 150 degree point, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 69033.

Specifications

Series
103
Unit of Measure
Metric
Shank Diameter (Metric)
9.80
Flute Length (Metric)
43.00
Overall Length (Metric)
89.00
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.3858
Shank Diameter (Decimal)
0.3858
Overall Length (Decimal)
3.5039
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Metric)
9.80
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.00000 / -0.00050
Cutting Diameter Tolerance (Metric)
+0.0000 / -0.0127
Number of Flutes
3
Coolant Option
External Coolant
Coating/Finish
AlTiN
Shank Type
Straight
Helix Direction
Right
Performance Class
General Purpose
Variable Helix
No
Shank Length (Decimal)
1.8250
Chip Breaker
No
Point Angle
150 degrees
Flute Length (Decimal)
1.6929
DIN Standard
DIN 6539
Number of Margins
3
Shank Length (Metric)
46.36
Usable Length (Decimal)
1.2205
Usable Length (Metric)
31.00
Reach Multiple
3xD
Shank Tolerance
h6
Size System
Metric
Workpiece Material
Steel, Cast Iron, Non-Ferrous
