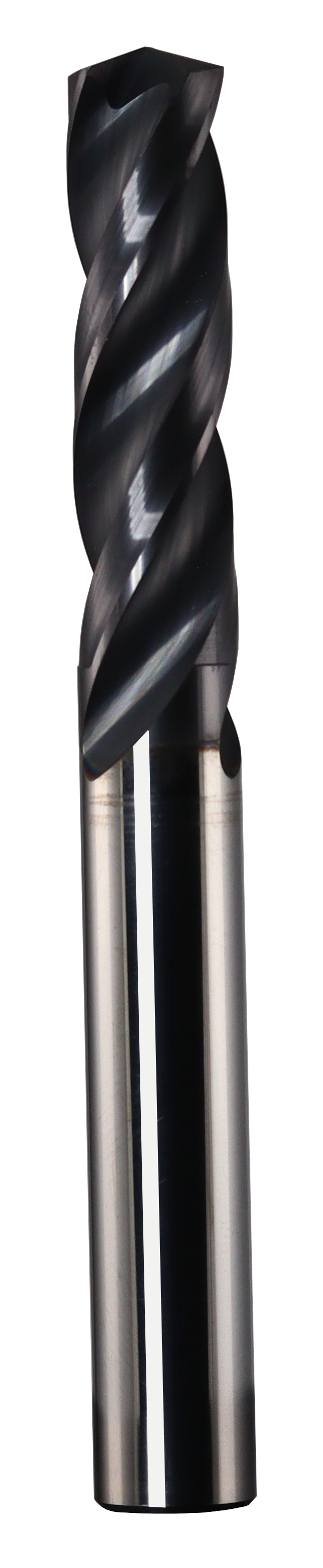

SGS Screw Machine Drill: Letter F (.257") Dia, 2" Flute Length, 3-1/4" OAL, 150° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 58062

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-58062
$178.70

SGS Series 103 screw machine drill for steel, cast iron and non-ferrous metals, 3 flutes, 30 degree helix, 150 degree point, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 58062.

Specifications

Series
103
Unit of Measure
Inch
Shank Diameter (Decimal)
0.2570
Flute Length (Decimal)
2.0000
Overall Length (Decimal)
3.2500
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
6.53
Shank Diameter (Metric)
6.53
Overall Length (Metric)
82.55
Overall Length (Fractional)
3-1/4
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.2570
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.00000 / -0.00050
Cutting Diameter Tolerance (Metric)
+0.0000 / -0.0127
Number of Flutes
3
Coolant Option
External Coolant
Coating/Finish
AlTiN
Shank Type
Straight
Helix Direction
Right
Performance Class
General Purpose
Variable Helix
No
Shank Length (Decimal)
1.3660
Chip Breaker
No
Point Angle
150 degrees
Flute Length (Metric)
50.80
Flute Length (Fractional)
2
Number of Margins
3
Shank Length (Metric)
34.70
Cutting Diameter (Letter)
F
Usable Length (Decimal)
1.6094
Usable Length (Metric)
40.88
Usable Length (Fractional)
1-39/64
Reach Multiple
5xD
Shank Tolerance
h6
Size System
Letter
Workpiece Material
Steel, Cast Iron, Non-Ferrous
SGS Screw Machine Drill: Letter F (.257") Dia, 2" Flute Length, 3-1/4" OAL, 150° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 58062
$178.70
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
