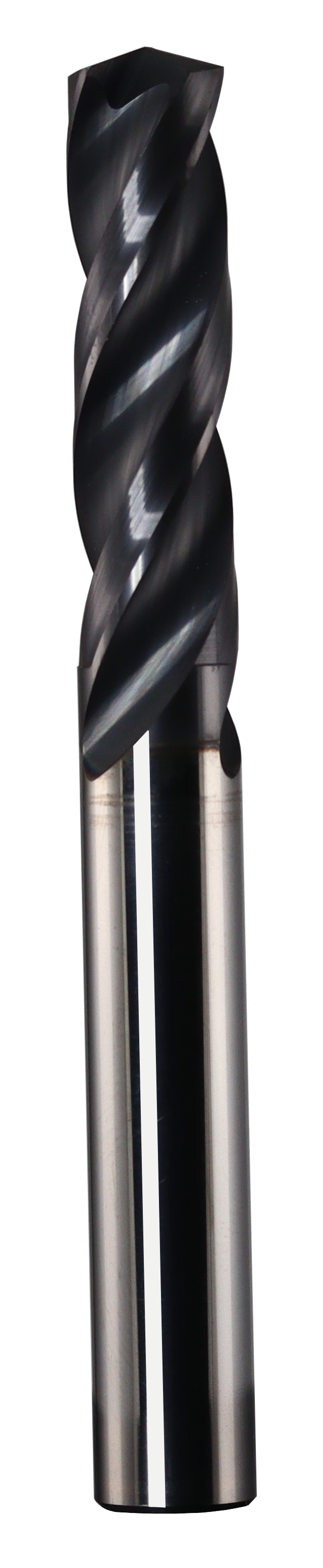

SGS Screw Machine Drill: Letter J (.277") Dia, 2-1/8" Flute Length, 3-1/2" OAL, 118° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 57182

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-57182
$143.16

SGS Series 101 screw machine drill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 20 degree helix, 118 degree point, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 57182.

Specifications

Series
101
Unit of Measure
Inch
Shank Diameter (Decimal)
0.2770
Flute Length (Decimal)
2.1250
Overall Length (Decimal)
3.5000
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
7.04
Shank Diameter (Metric)
7.04
Overall Length (Metric)
88.90
Overall Length (Fractional)
3-1/2
Flute Type
Spiral
Helix Angle
20 degrees
Cutting Diameter (Decimal)
0.2770
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.00000 / -0.00050
Cutting Diameter Tolerance (Metric)
+0.0000 / -0.0127
Size System
Letter
Coolant Option
External Coolant
Coating/Finish
AlTiN
Number of Flutes
2
Shank Type
Straight
Helix Direction
Right
Variable Helix
No
Shank Length (Decimal)
1.3750
Chip Breaker
No
Point Angle
118 degrees
Flute Length (Metric)
53.98
Flute Length (Fractional)
2-1/8
Number of Margins
2
Shank Length (Fractional)
1-3/8
Cutting Diameter (Letter)
J
Usable Length (Decimal)
1.7031
Usable Length (Metric)
43.26
Usable Length (Fractional)
1-45/64
Reach Multiple
5xD
Performance Class
General Purpose
Shank Length (Metric)
34.93
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Screw Machine Drill: Letter J (.277") Dia, 2-1/8" Flute Length, 3-1/2" OAL, 118° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 57182
$143.16
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
