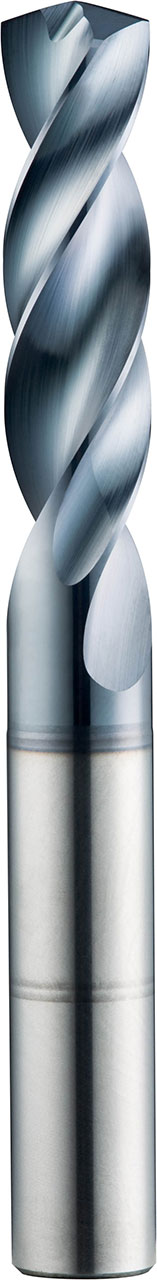

SGS Screw Machine Drill: Letter R (.339") Dia, 2-13/32" Flute Length, 4" OAL, 145° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 52349

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-52349
$495.66

SGS 135L screw machine drill for steel, stainless steel and hardened steel, 2 flutes, 32 degree helix, 145 degree point, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 52349.

Specifications

Series
135L
Unit of Measure
Inch
Flute Length (Decimal)
2.4063
Overall Length (Decimal)
4.0000
Shank Length (Decimal)
1.5625
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
8.61
Shank Diameter (Metric)
9.53
Shank Diameter (Fractional)
3/8
Overall Length (Metric)
101.60
Overall Length (Fractional)
4
Flute Type
Spiral
Helix Angle
32 degrees
Cutting Diameter (Decimal)
0.3390
Secondary Workpiece Material
Cast Iron, Non-Ferrous, High-Temp Alloy
Cutting Diameter Tolerance (Decimal)
+0.00024 / +0.00083
Cutting Diameter Tolerance (Metric)
+0.0061 / +0.0211
Size System
Letter
Coolant Option
External Coolant
Coating/Finish
AlTiN
Number of Flutes
2
Shank Type
Straight
Helix Direction
Right
Variable Helix
No
Shank Length (Fractional)
1-9/16
Chip Breaker
No
Point Angle
145 degrees
Flute Length (Metric)
61.12
Flute Length (Fractional)
2-13/32
Number of Margins
4
Shank Length (Metric)
39.69
Cutting Diameter (Letter)
R
Usable Length (Decimal)
2.1250
Usable Length (Metric)
53.98
Self Centering
Yes
Usable Length (Fractional)
2-1/8
Reach Multiple
5xD
Performance Class
High Performance
Shank Diameter (Decimal)
0.3750
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Hardened Steel
SGS Screw Machine Drill: Letter R (.339") Dia, 2-13/32" Flute Length, 4" OAL, 145° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 52349
$495.66
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
